VLX 120 Glass Railing System

VLX 120 Glass Railing System in San Diego, CA | Hale Windows San Diego

The VLX 120 Glass Railing System is a premium aluminum-framed glass railing built for San Diego homeowners and commercial builders who want clean sightlines, real durability, and hardware that doesn’t corrode in coastal air. We’re Hale Windows San Diego, an authorized ViewLux installation partner, which means you buy the product and the installation from one accountable local team, not a middleman. Frameless glass panels sit in a slim 2.20-inch profile with stainless hardware rated for interior and exterior salt-air exposure. If you’re planning a deck, balcony, stairwell, or pool enclosure in San Diego, call us at (619) 793-3248 to discuss your project.

Call (619) 793-3248

Product Overview – VLX 120 Glass Railing System

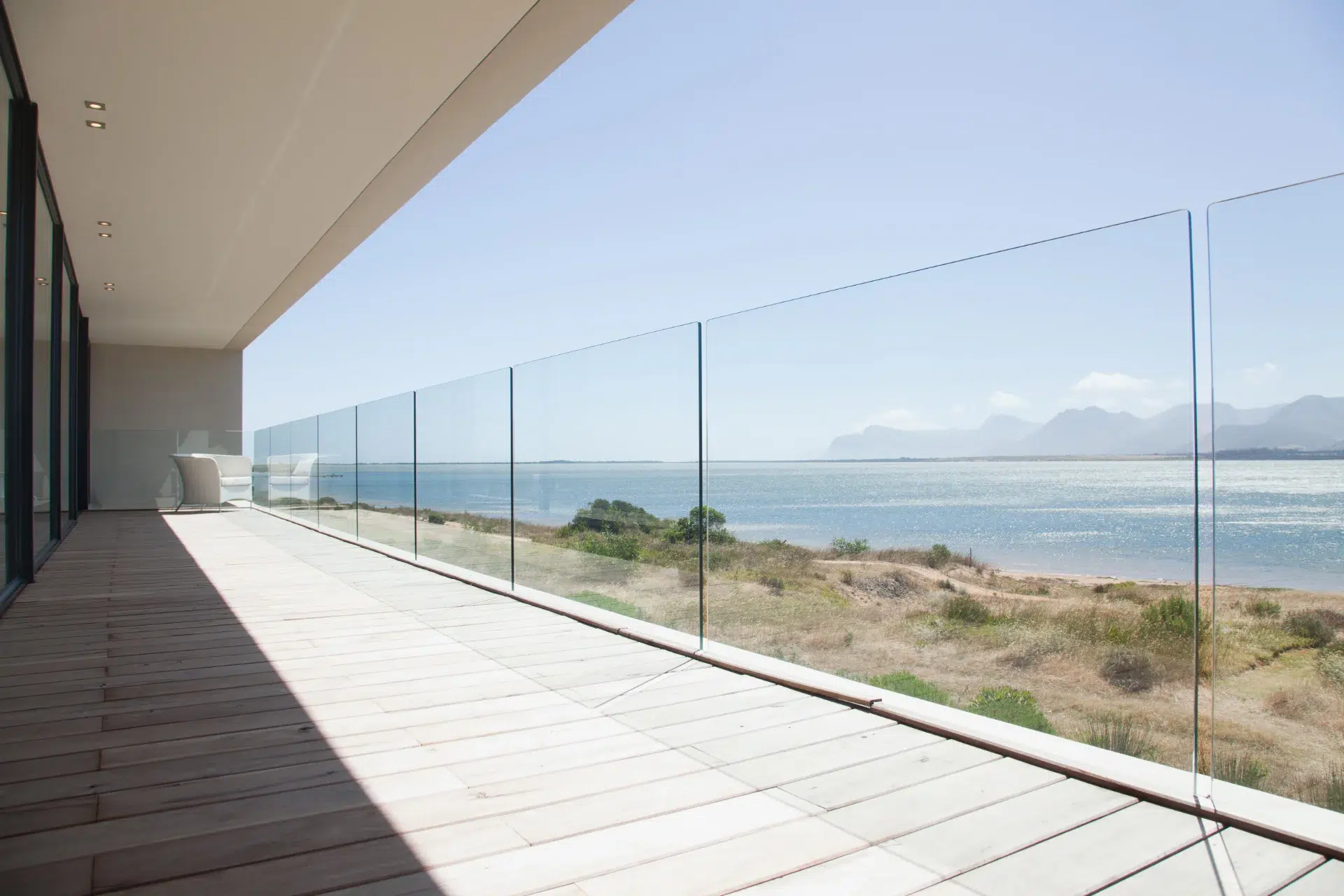

The VLX 120 is what most people picture when they say “modern glass railing” but can’t quite find: true frameless glass panels that lock into a narrow aluminum base channel, polished stainless hardware, and the kind of restrained engineering that lets the view do the talking. Hale Windows San Diego carries this system because San Diego projects, from Coronado condos to Rancho Santa Fe hillside homes, consistently ask for railings that don’t interrupt Pacific sightlines.

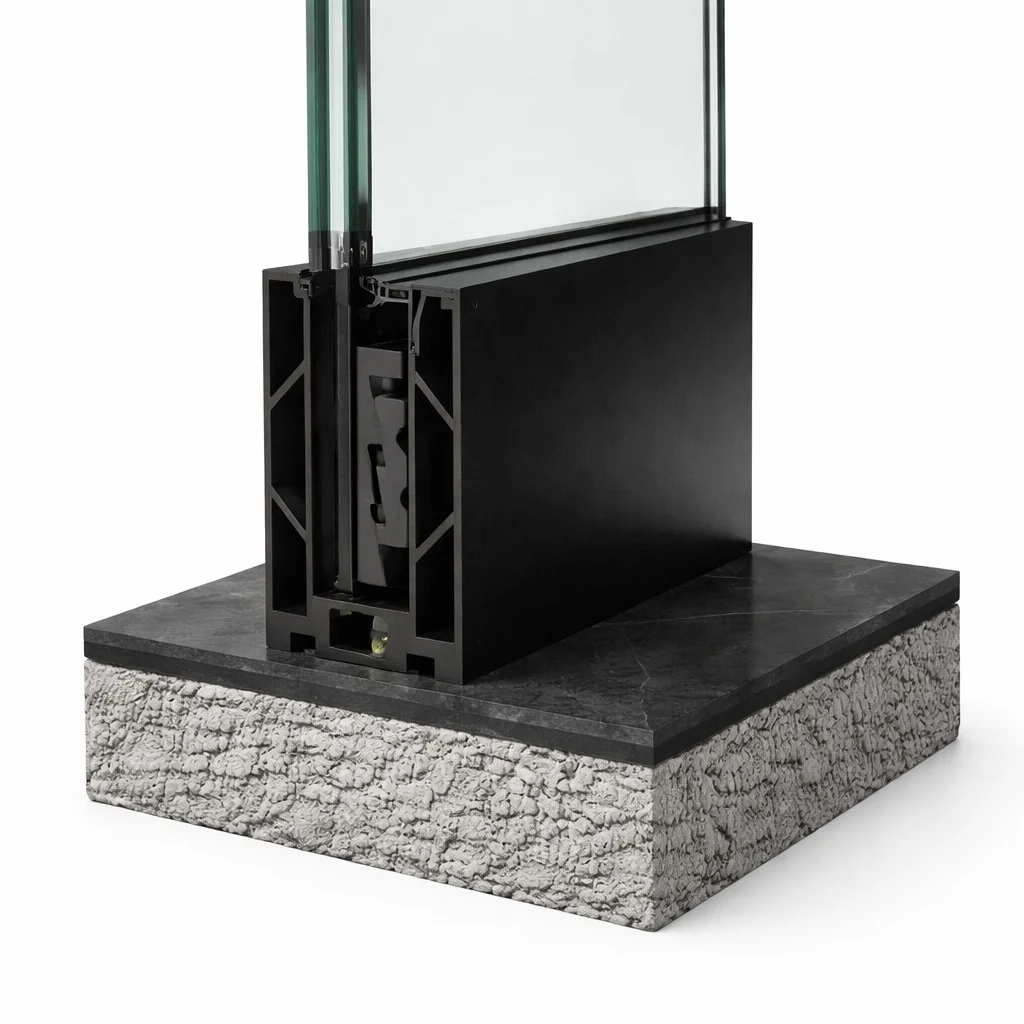

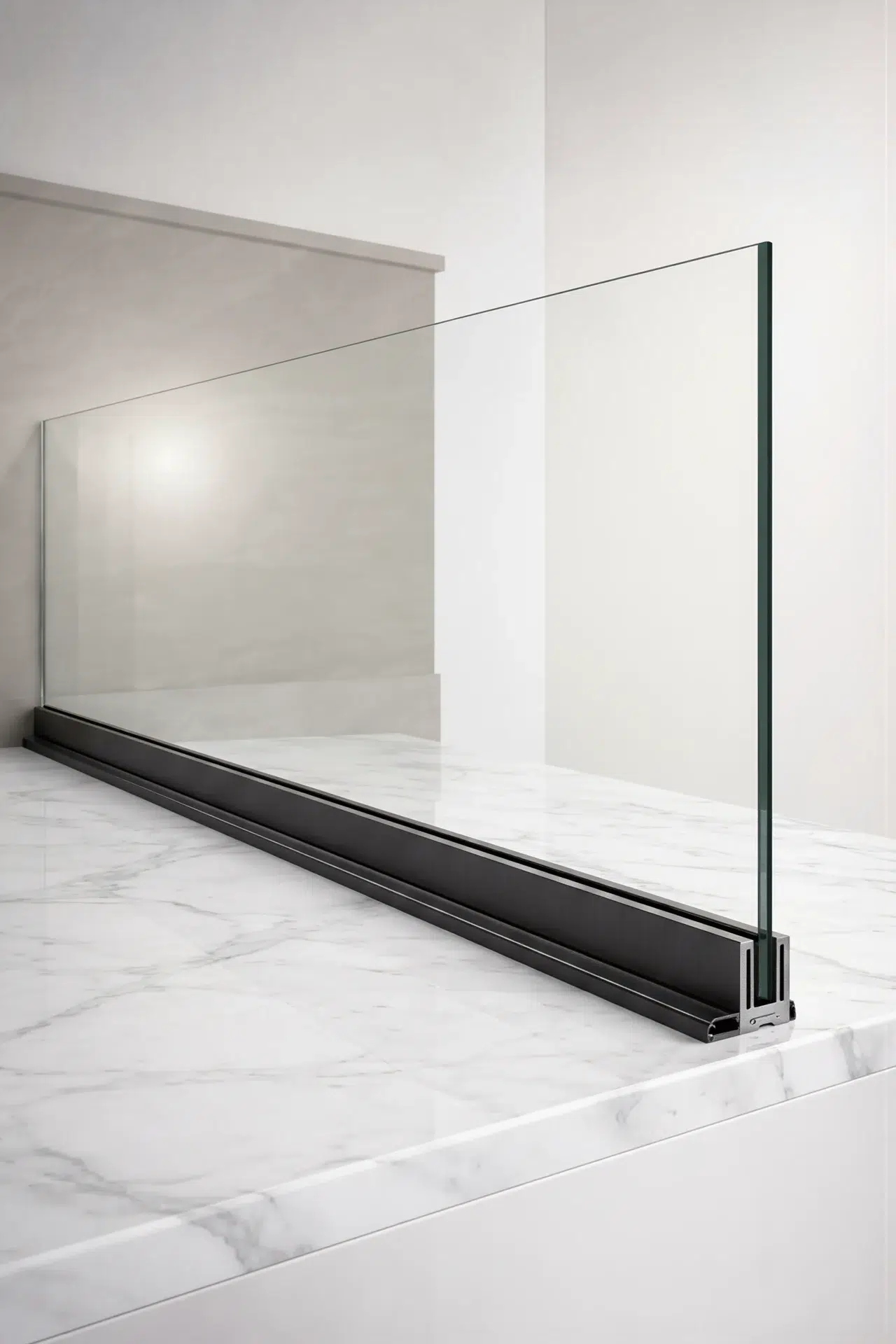

The design philosophy is simple: remove everything that doesn’t need to be there. The vertical posts are minimal or eliminated entirely depending on the panel configuration, which gives you that floating-glass look without sacrificing lateral stability. The aluminum profile measures 2.20 inches across, so the base shoe reads as a slim architectural line rather than a bulky frame. Wall thickness on the extrusion is 0.079 inches, which matters more than it sounds. That’s the difference between a railing that stays square through San Diego’s afternoon wind gusts and a channel that torques and lets panels chatter. The stainless hardware is marine-grade, chosen specifically because interior and exterior applications in San Diego both deal with humidity, salt, and sunscreen residue. Panel sizes are custom cut per project, so you’re never locked into stock dimensions that leave awkward gaps. Buyers choose this series when they want a railing that disappears visually but performs like fixed glazing.

Technical Specifications

Here’s what you’re actually getting when you order the VLX 120 through Hale Windows San Diego. These numbers come straight from the manufacturer’s product data, and we verify every dimension during our pre-installation measure. No spec sheets with fine print surprises. No “similar product” substitutions.

• Base profile width: 2.20 inches, slim enough to read as contemporary, deep enough to hold laminated glass
• Aluminum wall thickness: 0.079 inches on all extrusion profiles
• Panel sizing: Custom cut to your exact opening dimensions, no maximum span limitations within engineering limits
• Glass types: Clear Tempered, Frosted Tempered, Low-Iron Tempered, Laminated Safety
• Frame finishes: Premium Black, Brushed Stainless, Anodized Silver, Bronze, Champagne, Pure White
• Hardware: Stainless steel, marine-grade, supplied with every panel
• Application: Interior and exterior, including pool surrounds and ocean-facing elevations

Performance Features

Thermal Efficiency – The VLX 120 aluminum profile incorporates thermal break technology that separates interior and exterior metal faces. That matters on San Diego decks that bake in full sun from noon to six. Without a thermal break, the aluminum channel becomes a heat bridge, expanding and contracting through every temperature swing. NFRC-rated energy performance means the railing contributes to the building envelope rather than working against it.

Acoustic Performance – Laminated Safety glass dampens sound transmission measurably better than monolithic tempered panels. If your San Diego balcony overlooks a busy street, I-5 corridor, or a flight path into Lindbergh Field, laminated glass takes the edge off. It also holds together if it breaks, which is the bigger advantage.

Airtightness & Weather Seal – Every perimeter joint on a Hale Windows San Diego VLX 120 installation gets AAMA 812 low-expansion foam sealant. That’s the standard for controlling air movement at the mounting surface. It prevents the whistling sound you sometimes hear on cheaper railings when wind passes through the base channel, and it keeps moisture from working into the substrate.

Waterproofing – A railing mounted to a deck or balcony is only as waterproof as its installation. We seal the base shoe to the mounting surface, not just around it. AAMA 2400/2410 compliance governs the installation practice, and we follow it on every job from Encinitas to Chula Vista. Water that gets under the base channel is how rot starts in structural framing.

Wind Resistance – San Diego’s coastal microclimates produce gust patterns that change block by block. Point Loma faces different wind loads than inland Poway or East County. The VLX 120 is engineered and wind-load rated for local climate requirements, and we work with panel sizing and post spacing so your railing meets code for your specific exposure, not a generic Southern California average.

Security & Hardware – Stainless hardware is standard, not an upgrade. That’s a meaningful distinction in San Diego, where marine layer moisture settles on exposed metal every morning from La Jolla to Imperial Beach. The glass panels lock into the base channel with mechanical fasteners, not adhesive only. If impact resistance is your priority, laminated safety glass is the option to ask about. It meets impact standards and stays intact if a panel is struck.

Color & Glass Options

Six aluminum finishes give you real design range with the VLX 120. Premium Black is the most requested finish we install in San Diego, and it works beautifully on modern coastal homes with white or light stucco. Brushed Stainless reads as architectural and pairs with stainless steel appliances and exterior hardware, popular in Bankers Hill condos and downtown high-rises. Anodized Silver is the quietest finish, reflecting light without drawing attention, a natural choice for traditional homes in Mission Hills or Del Mar. Bronze adds warmth and ages well in direct sun, a frequent pick for pool enclosures in East County. Champagne sits between bronze and silver, a warmer metallic that suits Mediterranean-style homes in Point Loma. Pure White disappears against painted trim, ideal for classic coastal cottages in La Jolla Shores.

On the glass side, Clear Tempered is the default for unobstructed views. Frosted Tempered adds privacy for balcony railings that face neighbors or walkways. Low-Iron Tempered removes the green tint inherent in standard glass, producing noticeably cleaner clarity, worth the upgrade for ocean-view applications. Laminated Safety is the one we recommend for pool surrounds, second-story decks, and any location where impact resistance matters.

Installation by Hale Windows San Diego in San Diego

We’ve installed ViewLux products across San Diego County for years, and we’ll tell you the same thing we tell every client: the railing is only as good as the installation. An expensive glass panel system mounted out of level or sealed incorrectly fails the day after the warranty expires. That’s why we treat installation as its own discipline, not an afterthought.

Every VLX 120 job starts with a pre-installation inspection. We check the mounting substrate, verify measurements against our shop drawings, and identify any structural issues before the first hole is drilled. We set the base channel level, plumb, and square, within a tolerance tighter than code requires. In San Diego’s hillside communities, where decks and balconies often have intentional slope for drainage, we account for that so your railing reads level to the eye while water still moves away from the structure. We apply AAMA 812 low-expansion foam sealant at every perimeter joint, following the AAMA 2400/2410 installation standard through the entire process. After the panels are set and hardware torqued, we run a water test at the mounting surface and complete a final inspection with you on site. We clean up the work area and haul off all packaging.

Improper installation voids the manufacturer’s warranty. That’s true of ViewLux and every other premium railing brand. Hiring Hale Windows San Diego means the installation is done to the manufacturer’s spec, so your warranty stays intact from day one. San Diego’s coastal environment, with salt air, UV exposure, and thermal cycling, punishes shortcuts faster than most climates. We build for it.

Frequently Asked Questions – VLX 120 Glass Railing System

Get a Quote – VLX 120 Glass Railing System in San Diego

Ready to see what the VLX 120 looks like on your San Diego deck, balcony, or stairwell? We’ll come to your property, take exact measurements, and give you a written line-item quote with no surprises. Fixed pricing, no change orders, free on-site measurements. Call Hale Windows San Diego at (619) 793-3248 to schedule yours.
