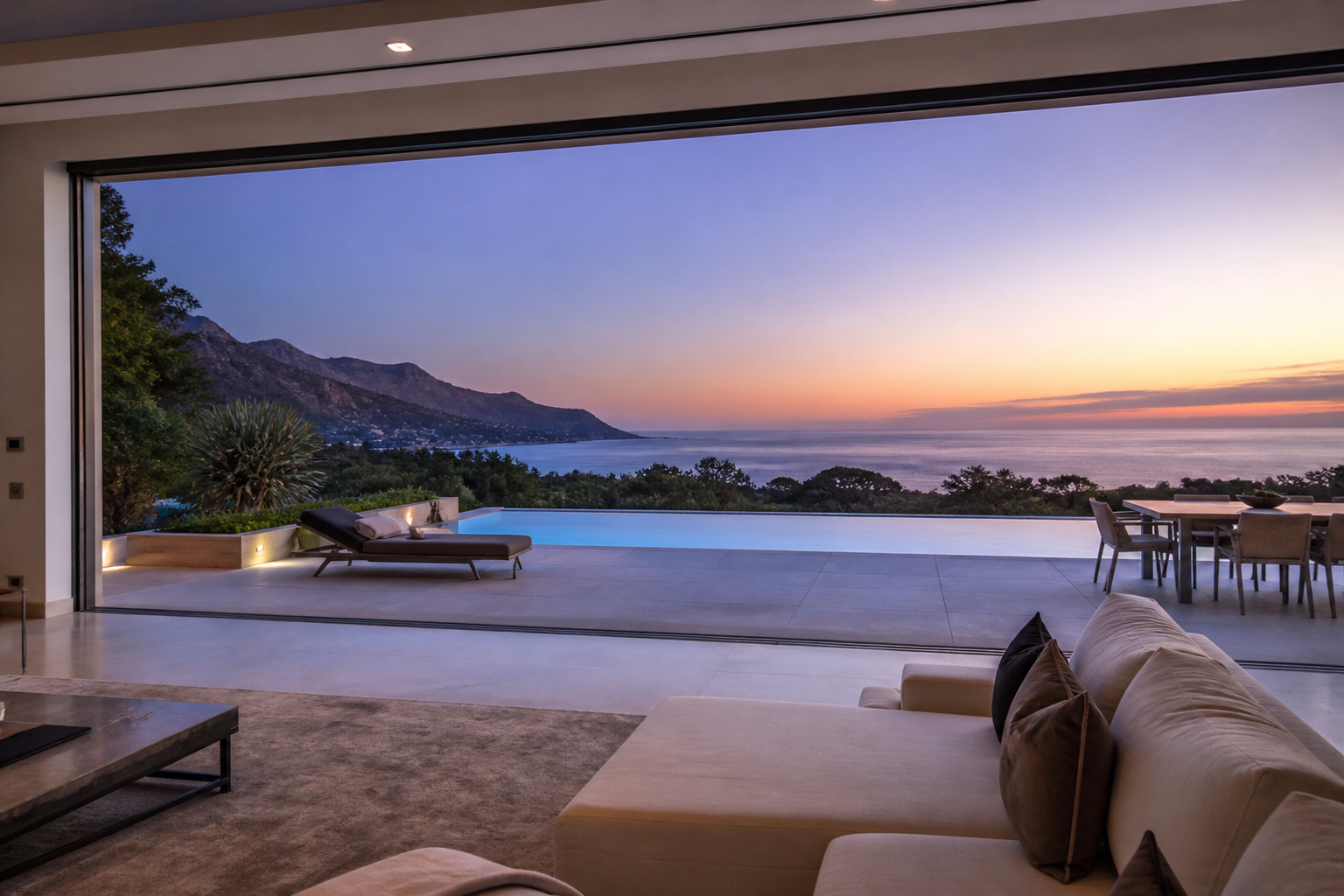

The VLX 138 Panoramic Sliding Door is what you spec when the view matters more than anything else in the room. It’s a large-span aluminum slider engineered to open entire walls up to 36 feet wide, with sightlines so thin you barely notice the frame is there. Homeowners across San Diego, CA choose it for ocean-facing living rooms, canyon-view great rooms, and indoor-outdoor entertaining spaces where a standard patio door just won’t do. Hale Windows San Diego is an authorized ViewLux installation partner, which means we sell the product, install it to factory and AAMA standards, and stand behind the work. Call (619) 793-3248 to talk through your project.

Call (619) 793-3248

Product Overview – VLX 138 Panoramic Sliding Door

The VLX 138 belongs to a category of door that architects call “panoramic” for a reason: the frame gets out of the way. Wall thickness measures 0.138 inches and the visible profile is just 1.535 inches wide, which is slimmer than a standard two-by-four. That thin profile is what creates the expansive, uninterrupted view the series is known for. You get more glass, less aluminum, and a sightline that stays clean across the full width of the opening.

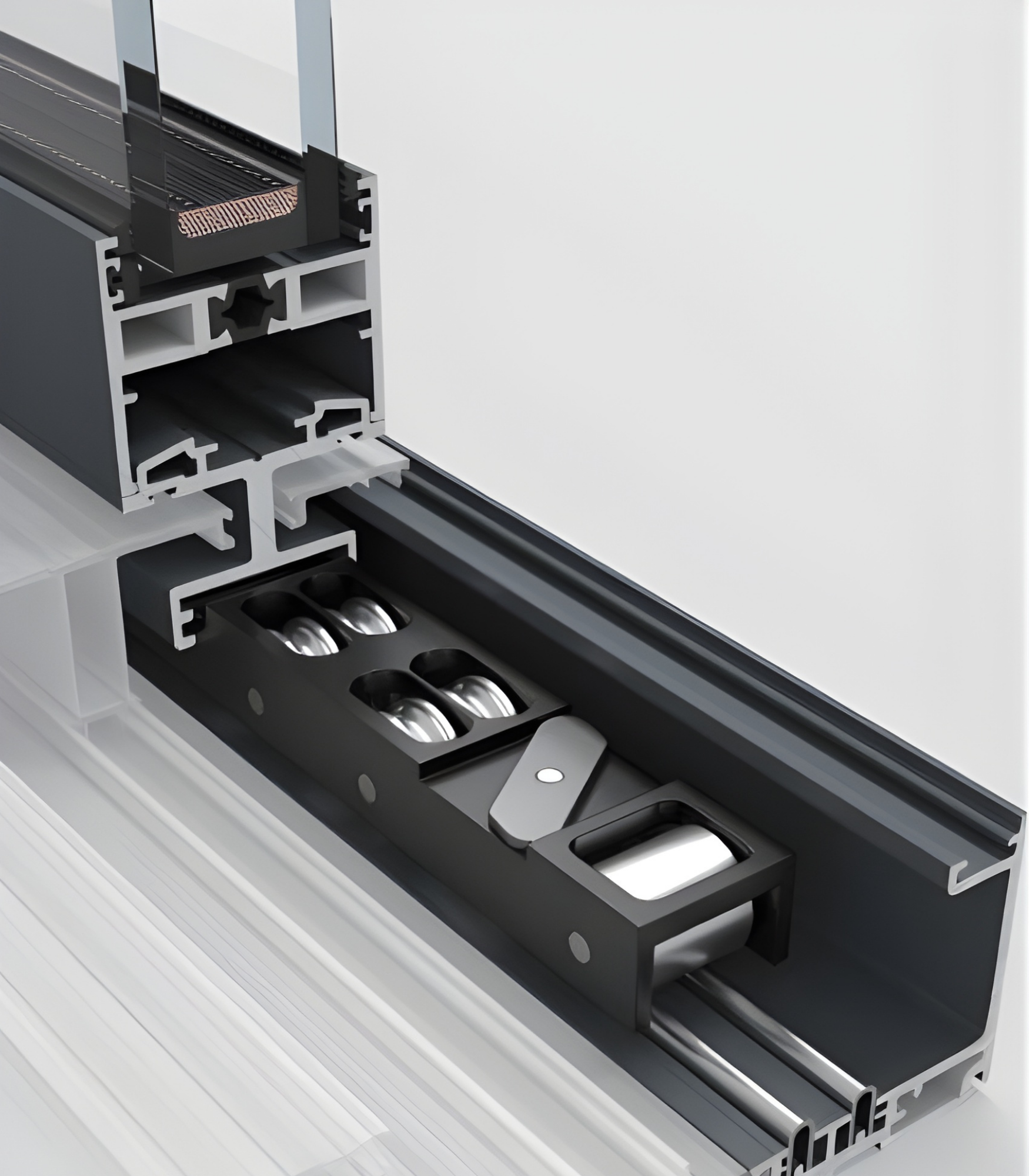

This is a luxury large-span panoramic slider built for serious openings. The panels ride on stainless steel bearings that make the glide unusually smooth, even when a single panel weighs several hundred pounds. You can open a 20-foot span with two fingers. That matters in San Diego, where doors get opened and closed dozens of times a day between the house and the patio or deck.

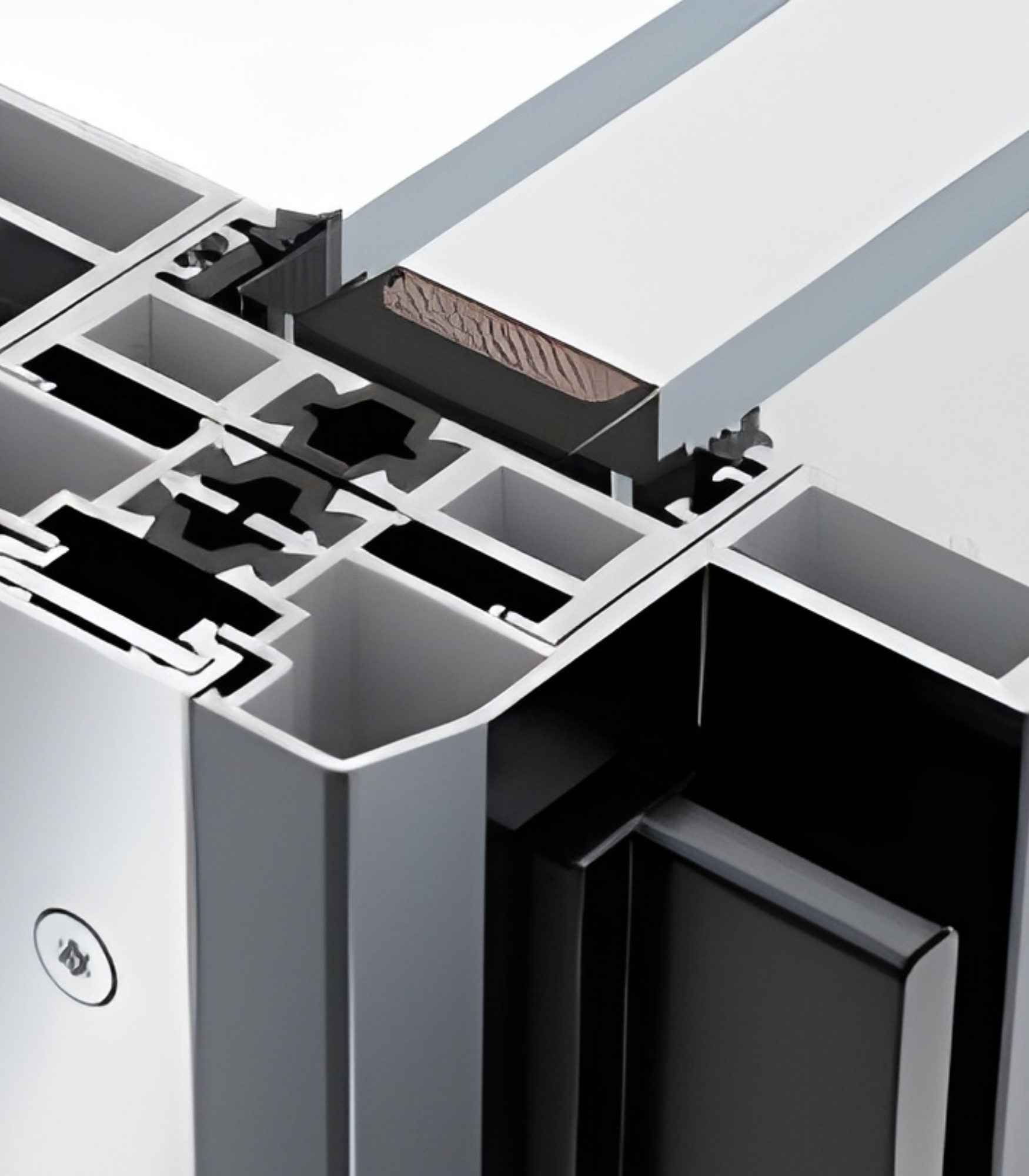

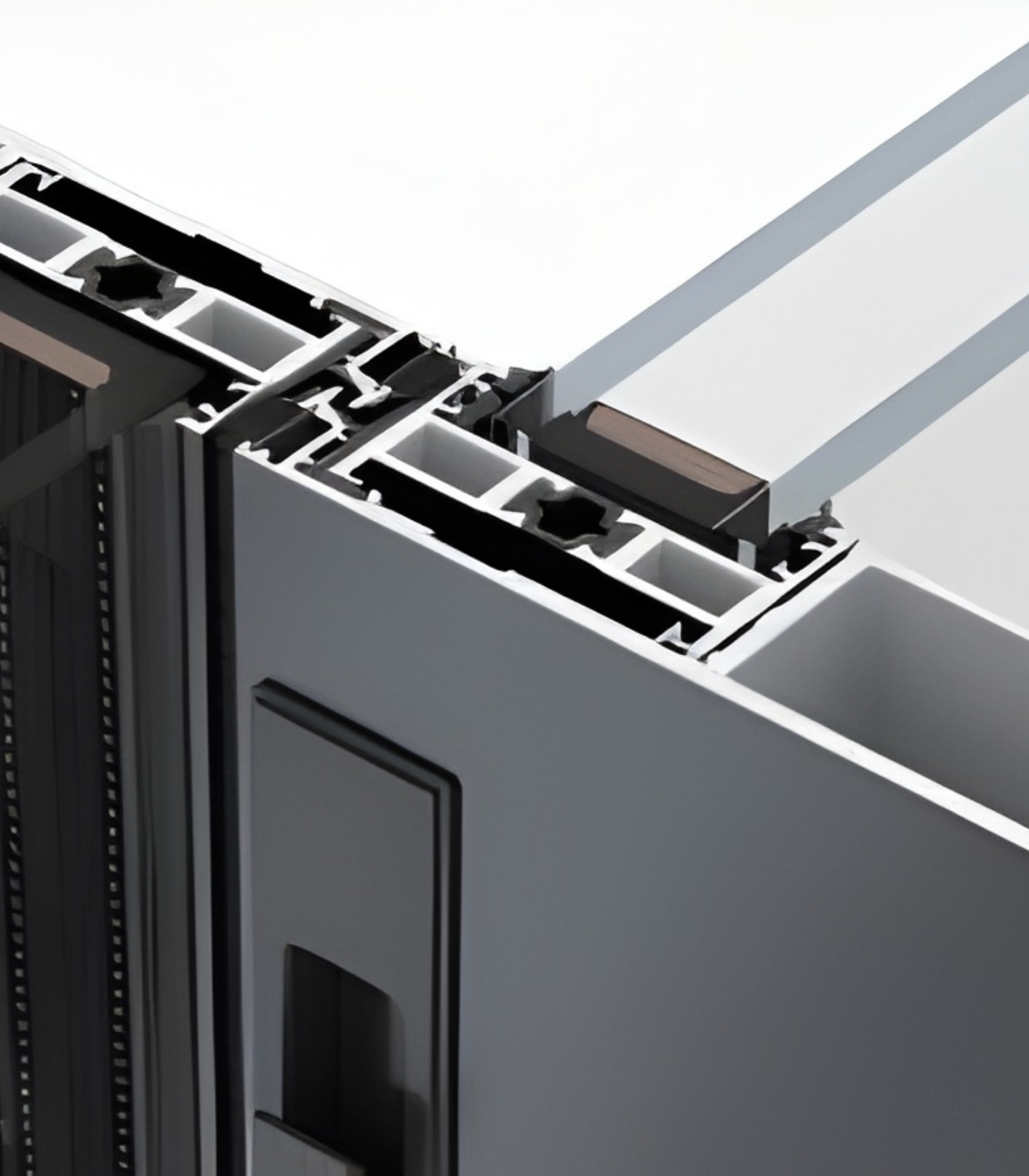

The frame is extruded aluminum with a thermal break separating the interior and exterior profiles. That break is what keeps the interior surface from baking in August and from sweating during coastal fog season. It’s the same engineering approach used in high-end commercial storefront systems, scaled for residential use.

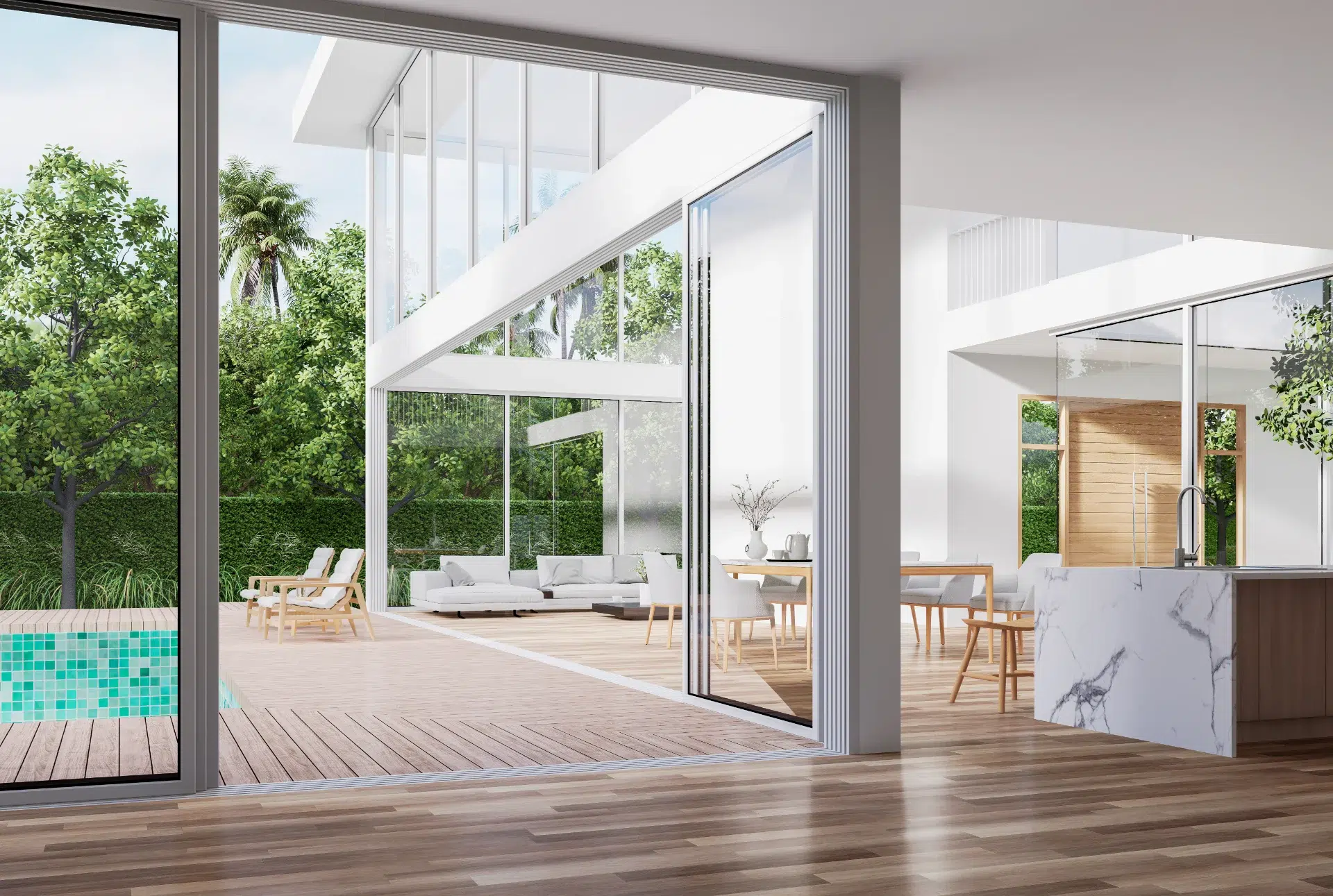

Buyers choose the VLX 138 when they’re planning a remodel that opens a load-bearing wall, building a new home with a view corridor, or replacing an old multi-panel aluminum slider that’s stuck in its track half the time. It fits modern architecture naturally, but the right finish and glass selection makes it work on Spanish Colonial and Craftsman homes in San Diego, CA too. We sell and install the VLX 138 throughout San Diego County, and we handle the measuring, the structural consultation, and the installation.

Technical Specifications

Here’s what the VLX 138 Panoramic Sliding Door is made of and what it offers, in plain terms:

• Wall thickness: 0.138 inches of extruded aluminum at the frame wall.
• Visible profile width: 1.535 inches, meaning thin sightlines and maximum glass area.
• Maximum span: Up to 36 feet wide in a single opening, depending on track configuration and panel count.

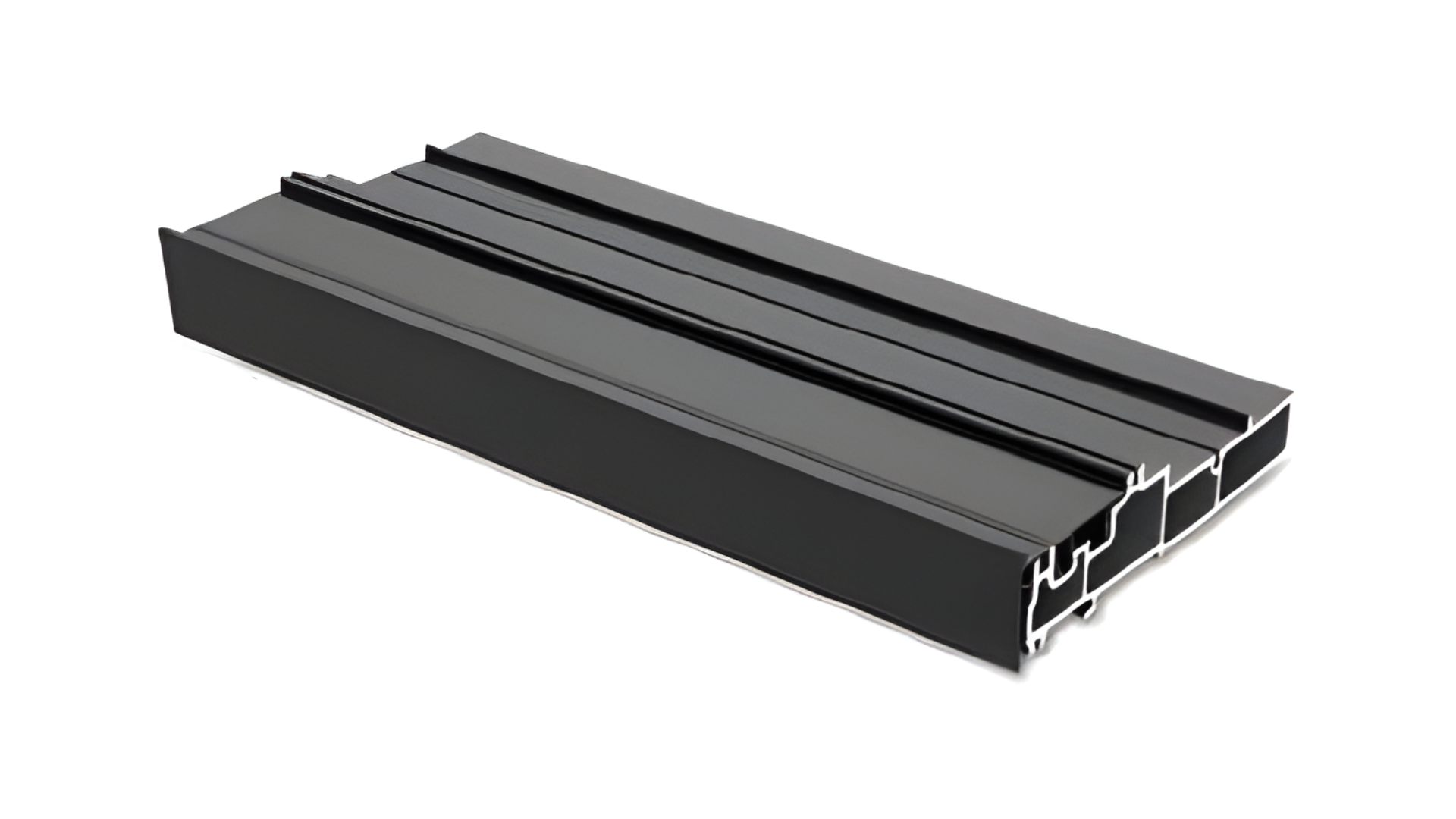

• Track configurations: 2-track, 3-track, and 4-track systems. A 2-track gives you the cleanest look with stacked or pocketed panels. A 3-track or 4-track lets you stack multiple panels to one side and open a larger percentage of the wall.
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, and Gray Tint. Low-E is our default recommendation in San Diego for heat rejection. Impact-resistant laminated glass is also available for homes in wildfire-adjacent or high-wind zones.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. All are powder-coated or anodized finishes designed for coastal air longevity.
• Screen options: Retractable screen or sliding screen, both built to match the VLX 138 track profile.
• Sill options: Flush sill, low-profile sill, or recessed sill. Flush sill is popular for true indoor-outdoor floor continuity. Low-profile and recessed sills improve water performance on exposed elevations.
• Performance: NFRC-rated thermal performance via thermal break technology. Airtightness, waterproofing, and mist prevention ratings are tested. Wind-load ratings are available to meet San Diego County structural requirements.

Performance Features

Thermal Efficiency. The VLX 138 uses a thermal break in the aluminum frame, which physically separates the exterior metal from the interior metal. That reduces heat transfer through the frame itself, which is the weak point on older aluminum sliders. Paired with Low-E glass, the door is NFRC-rated and contributes to a cooler interior in San Diego, CA without running the AC constantly.

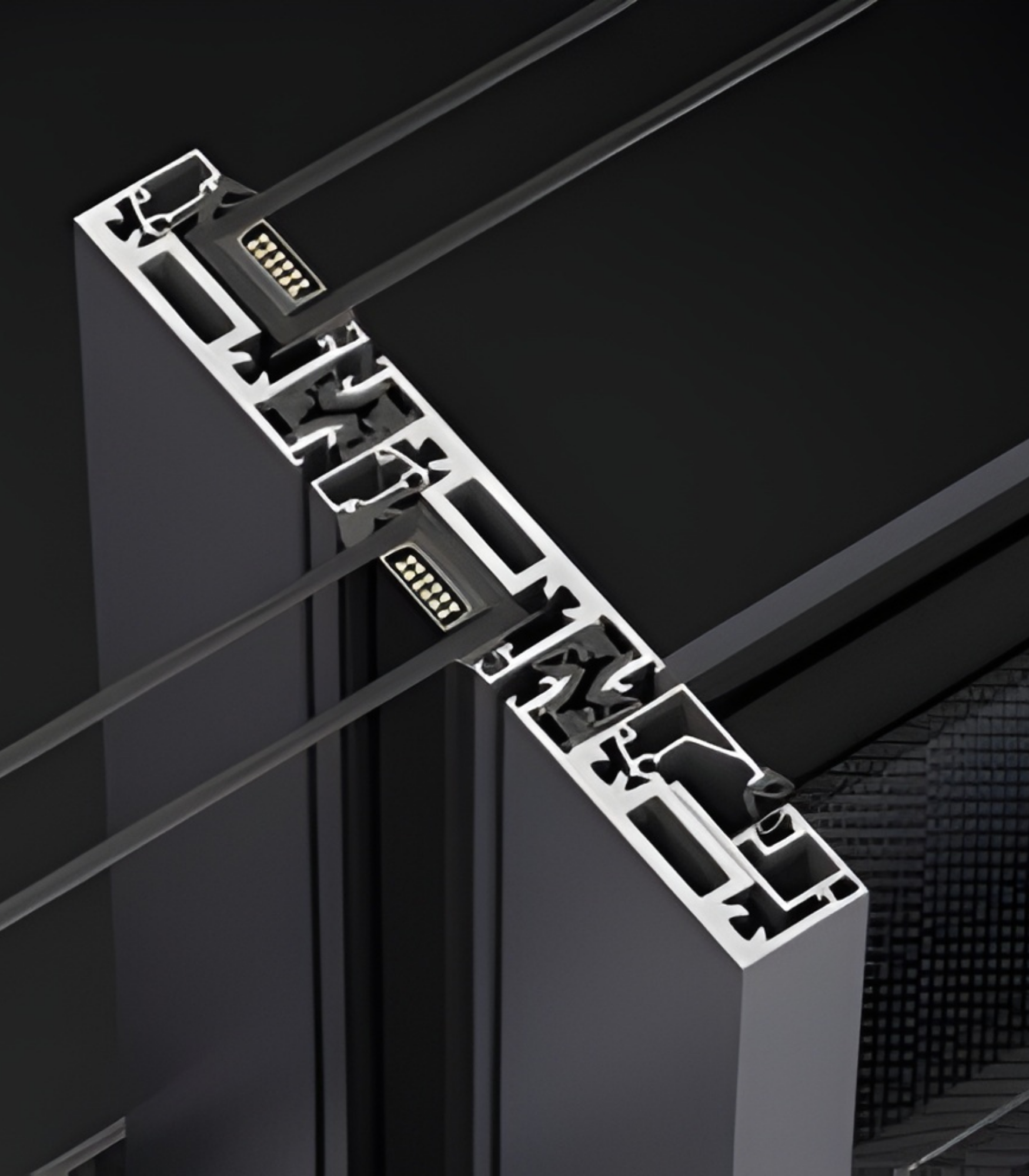

Acoustic Performance. The multi-chambered frame design and heavier glass packages cut exterior noise noticeably. If you live near the 5, the 8, or the trolley line, or just have close neighbors in a neighborhood like North Park or Pacific Beach, the right glass and a properly sealed frame make a real difference in how much sound gets through.

Airtightness & Weather Seal. The VLX 138 uses compression gaskets and interlocking panel profiles that seal tightly when the door is closed. Fewer air leaks means less dust, fewer drafts, and better HVAC performance. This is also where professional installation matters: a door that isn’t set square will never seal the way it should.

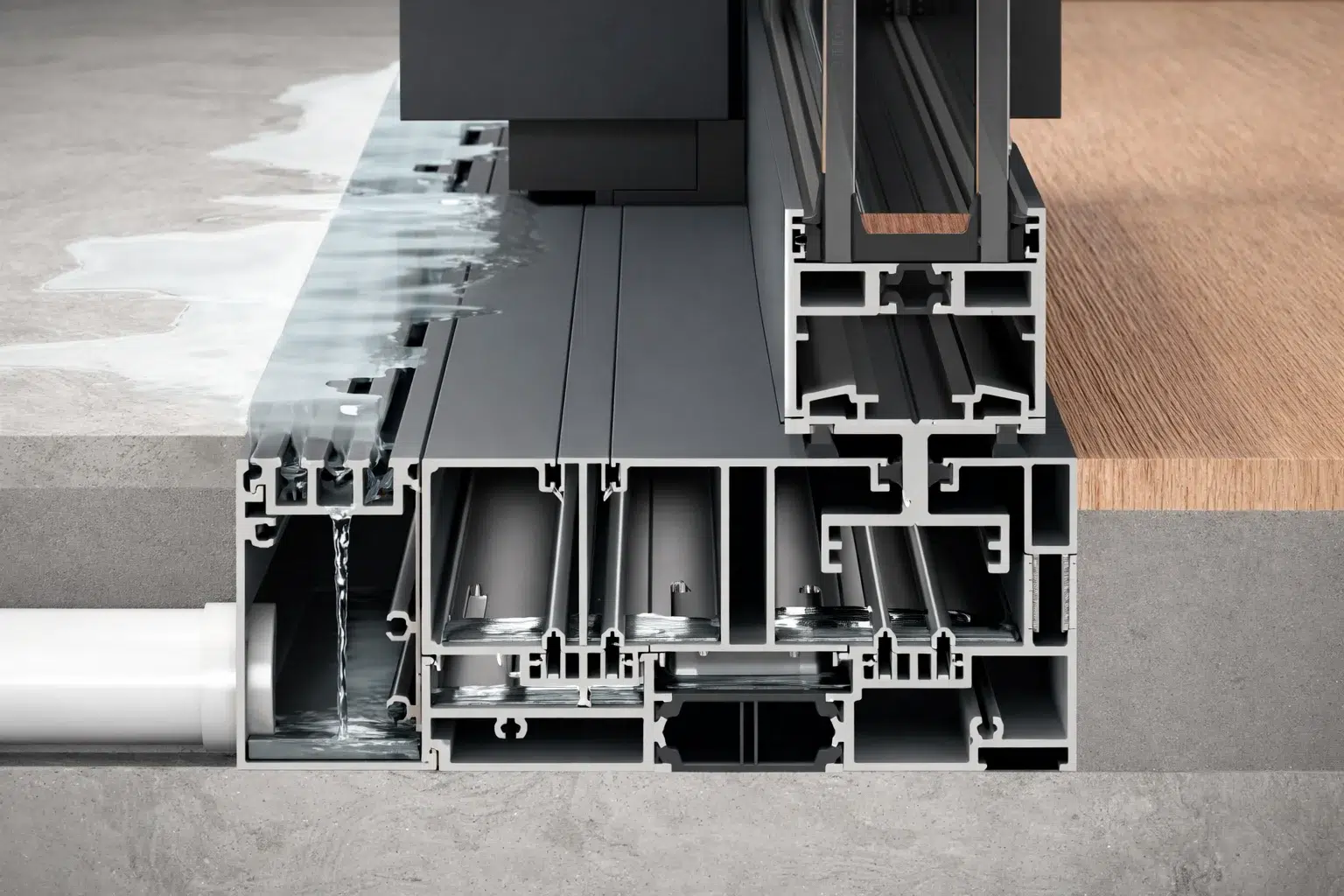

Waterproofing. The track system is designed with integrated drainage channels that direct water out and away from the interior. Combined with a properly sloped sill and sealed perimeter, the door holds up to San Diego’s rain season and the occasional sideways coastal storm. On anything but a protected patio, we recommend a low-profile or recessed sill for added water protection.

Wind Resistance. San Diego County has specific wind-load requirements, particularly for homes in the foothills, on ridgelines, and within a few blocks of the coast. The VLX 138 can be configured with impact-resistant laminated glass and heavier-duty hardware to meet these requirements. We verify the structural loads for your specific location before ordering.

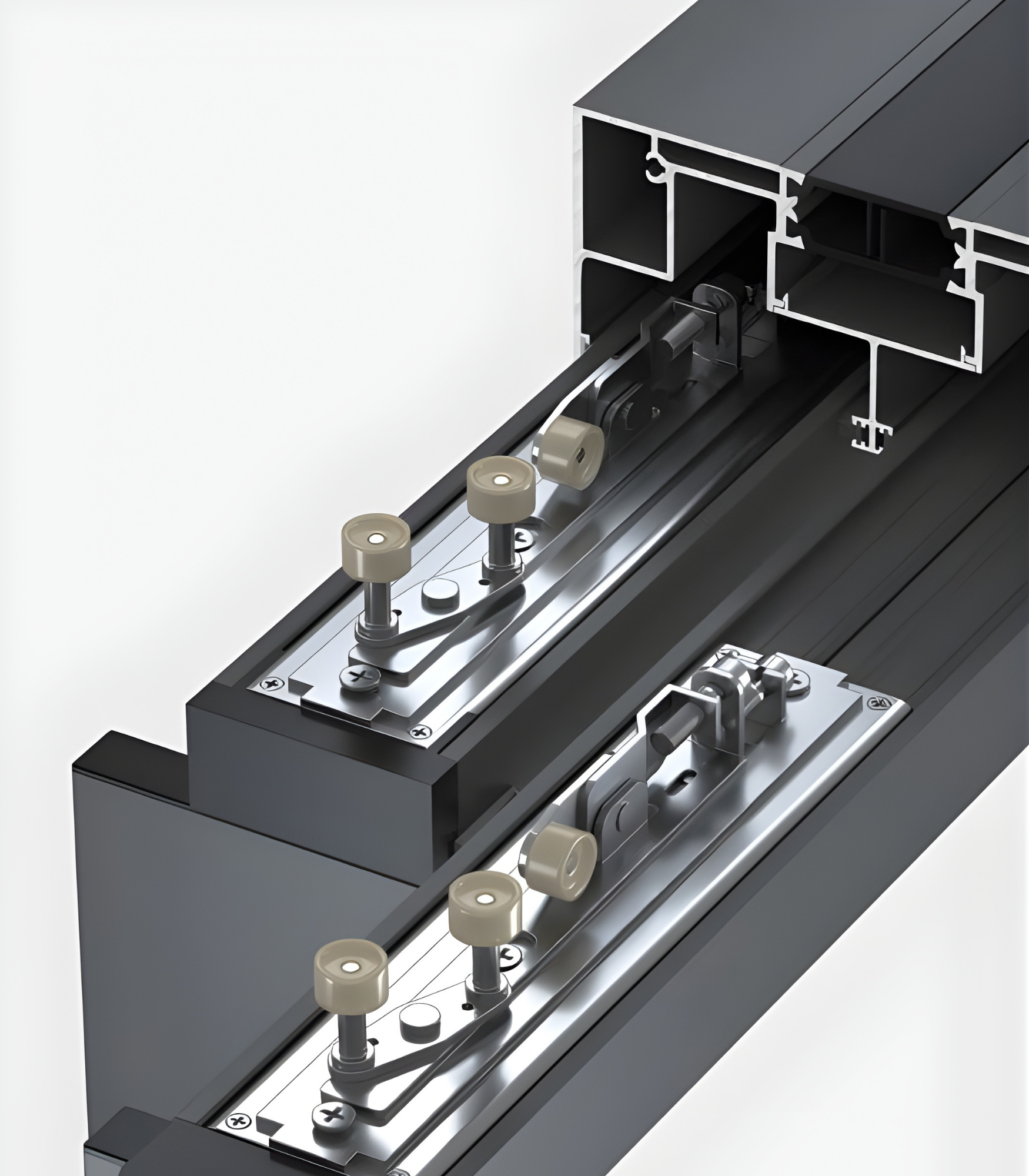

Security & Hardware. The sliding panels lock with robust multi-point hardware, not a flimsy thumb latch. Stainless steel bearings and heavy-duty rollers mean the panels don’t lift or shift under normal use. The profile design makes it difficult to pry a closed panel from the outside. This is a door you feel safe leaving closed when you leave for the day.

Color & Glass Options

The VLX 138 Panoramic Sliding Door comes in six finishes. Premium Black and Anodized Silver are the two most common choices for modern and contemporary homes in San Diego, CA, especially in neighborhoods like La Jolla, Point Loma, and Mission Hills where clean lines and minimal frames are the style. Pure White tends to work best on traditional or coastal cottages where the frame should blend into white trim. Bronze and Champagne suit the warmer palettes you see on Spanish Colonial and Mediterranean-style homes in places like Rancho Santa Fe and Coronado. Teak Wood is a wood-grain powder coat that gives you the warmth of timber without the maintenance, and it’s a strong choice for Craftsman homes in North Park, South Park, and Kensington.

On the glass side, Clear gives you the purest view but the least heat rejection. Low-E is our standard recommendation for any west-facing or south-facing opening in San Diego, because it cuts solar heat gain without visibly darkening the room. Gray Tint and Black Tint add glare control and privacy while keeping the view, and they pair well with the Premium Black frame. Frosted and Obscure glass are best for the side of the house where you want light without giving the neighbors a clear sightline into the room. Impact-resistant laminated glass is available for all of these for homes in wildfire zones or high-wind exposure areas. We’ll walk you through the options when we measure the opening.

Installation by Hale Windows San Diego in San Diego

Buying a 36-foot-wide sliding door is one thing. Installing it correctly is another. We’ve seen beautiful doors fail because a contractor set the track out of level by a quarter inch, skipped the perimeter seal, or used the wrong flashing detail. A panoramic sliding door is not a drop-in replacement for a standard slider. The track must be dead level. The jambs must be plumb. The opening must be square. If any of those three is off, the panels bind, the seals leak, and the warranty goes out the window.

At Hale Windows San Diego, our install process starts with a pre-install inspection of the rough opening, the subfloor, and the structural header. We check the existing framing for deflection and confirm the opening dimensions against the factory order. Then we set the frame level, plumb, and square using shims and the manufacturer’s approved fastening pattern. We comply with AAMA 2400 and AAMA 2410 installation standards, which are the recognized national standards for window and door replacement. On all perimeter joints, we use AAMA 812 low-expansion foam sealant to create a continuous air and water barrier between the frame and the rough opening. After the panels are hung and adjusted, we run a water test on the sill and lower corners to confirm the drains work as designed. Then we clean up the job site, haul away the old door, and walk you through operation and maintenance.

San Diego, CA conditions are generally mild, but we install for the occasional extreme: heavy rain, wind gusts off the ocean, and heat spikes. We also account for local building code requirements for wind load and impact resistance where applicable. If your project is in the City of San Diego or any incorporated city in the county, we can handle the permit process as needed.

One more thing worth stating clearly: we are an authorized ViewLux installation partner. That means ViewLux recognizes our install team as trained and approved to install their products. It also means a warranty claim won’t get denied because the door was installed by someone who didn’t follow the spec. If you’ve been quoted this door by another contractor, ask whether they’re actually authorized to install it. It matters.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

What is the lead time for the VLX 138 Panoramic Sliding Door? Lead time is typically 8 to 12 weeks from order to delivery at our San Diego warehouse. Custom finishes, laminated glass, and very large spans can add time. We recommend ordering early in a remodel, because the rough opening work should be sequenced around the door. Call (619) 793-3248 and we’ll check current production timelines with ViewLux before you commit to a schedule.

Does the VLX 138 qualify for energy tax credits? Yes, in many configurations. The VLX 138 with Low-E glass and thermal break is NFRC-rated, which is often the benchmark used for federal and utility energy incentives. The exact credit depends on the specific glass package and the current tax year rules. We can provide the NFRC certificate for your configuration so your accountant or tax preparer can verify eligibility. Call (619) 793-3248 and ask us to pull the ratings for the door you’re considering.

What warranty comes with the Panoramic Sliding Door? The VLX 138 carries a manufacturer warranty from ViewLux on the frame, finish, hardware, and glass. The length and terms vary by component. Our installation workmanship is covered separately by Hale Windows San Diego. The important thing is that a proper installation by an authorized partner keeps the manufacturer warranty intact. Call (619) 793-3248 and we’ll walk you through the exact warranty terms for your project.

Can I customize the size of the door? Yes, within the engineering limits of the system. The VLX 138 is built to order, so panel widths, heights, and track configurations are determined by your opening. The maximum span is up to 36 feet wide, but the practical limit for any given home depends on the header, the number of panels, and the wind-load requirements for your location in San Diego County. We measure, confirm the structural conditions, and order the door to fit. Call (619) 793-3248 to schedule a measurement.

How do I maintain the aluminum frame and hardware? Clean the frame with mild soap and water twice a year, and rinse it thoroughly. Don’t use abrasive pads or solvent-based cleaners on the finish. Vacuum the track regularly so debris doesn’t work into the roller bearings. The stainless steel bearings are sealed and don’t need lubrication. If you’re near the coast in San Diego, CA, salt air builds up faster, so rinse the frame more often, especially on the seaward side. If the door ever feels stiff or noisy, call us before you force it. Call (619) 793-3248 for service or advice.

Get a Quote – VLX 138 Panoramic Sliding Door in San Diego

If you’re planning a project around the VLX 138, the next step is a free on-site measurement. We’ll come to your home anywhere in San Diego, CA, assess the opening, talk through track configurations, glass, and finish, and give you a written quote with line-item pricing. No pressure, no change orders later. Call Hale Windows San Diego at (619) 793-3248 to start your project today.

Written by the team at Hale Windows San Diego, authorized ViewLux installation partner serving San Diego, CA.
