VLX 100 Pivot Door

VLX 100 Pivot Door in San Diego, CA | Hale Windows San Diego

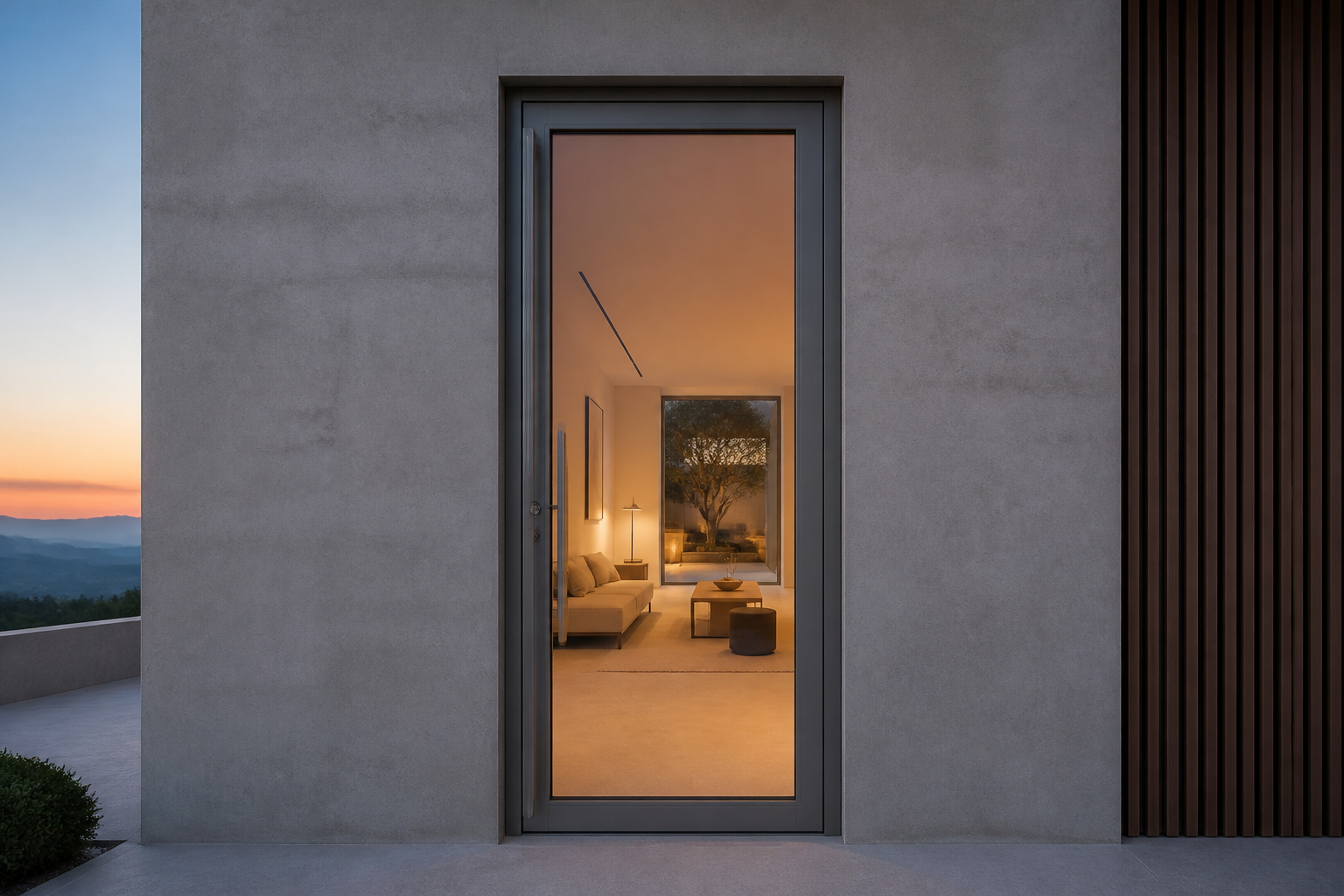

The VLX 100 Pivot Door is a heavy-duty aluminum door that rotates on a vertical center axis instead of traditional side hinges. Oversized glass, clean sightlines, and a frame built from 0.098″ wall aluminum make this a legitimate architectural statement piece. Homeowners across San Diego, from Rancho Santa Fe to Coronado, use it for entryways, courtyard access, and indoor-outdoor living spaces. Hale Windows San Diego is an authorized ViewLux installation partner, so when you buy the VLX 100 through us, the product warranty stays intact and the install meets AAMA performance standards. Call (619) 793-3248 to schedule a free on-site measurement.

Call (619) 793-3248

Product Overview – VLX 100 Pivot Door

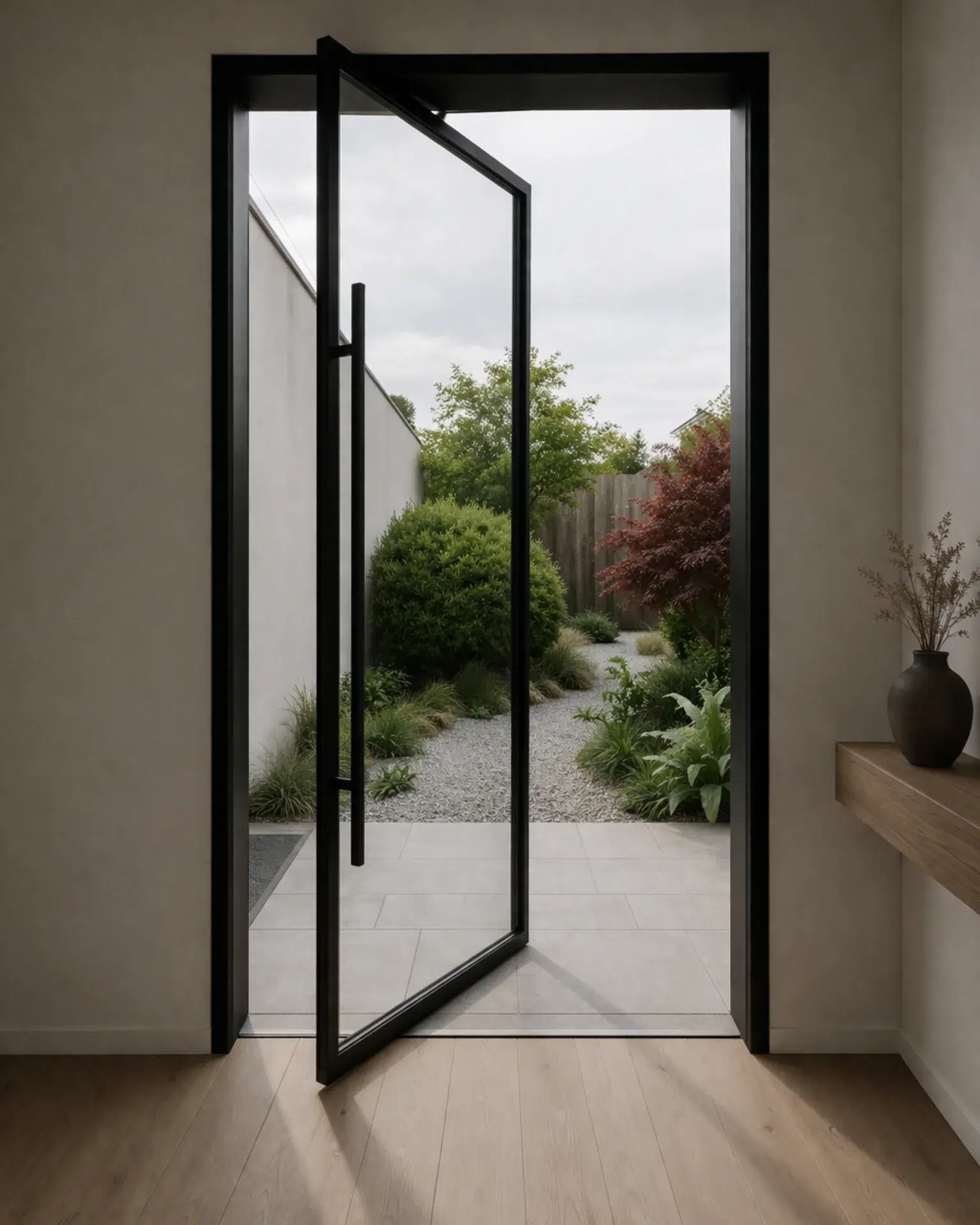

The VLX 100 exists for people who don’t want a front door that looks like everyone else’s front door. Instead of side hinges, the slab rotates on a pivot point set in from the edge, which lets a single panel span up to 60 inches wide and 120 inches tall without sagging over time. That’s the engineering draw: a pivot system distributes weight through the floor and header, so the door can be much larger than a conventional hinged door while still operating smoothly with one hand.

Where does it belong architecturally? Think modern and contemporary homes in La Jolla, Mission Hills, Del Mar, and Point Loma. The VLX 100’s 2.56″ frame profile is slim enough to keep sightlines clean, but the 0.098″ aluminum wall thickness gives the frame real structural authority. Builders specify this door when the entry needs to read as a design moment, not just an opening. You’ll see it on new construction, whole-home remodels, and high-end ADU projects across San Diego County.

Why buyers choose this series over other pivot door options comes down to the aluminum itself. Powder-coated and anodized finishes hold up against salt air in coastal San Diego neighborhoods like Ocean Beach and La Jolla Shores, where wood doors warp and steel doors rust. The VLX 100 pairs that resilience with oversized glass panels that flood entryways with California daylight while maintaining genuinely strong acoustic separation from the street.

If you’re researching pivot doors for a San Diego project, the VLX 100 is worth putting at the top of your shortlist. Hale Windows San Diego carries the full finish and glass lineup, and our install crews have set these doors in homes from Carlsbad to Chula Vista.

Technical Specifications

Here’s what the VLX 100 puts on the table, spec by spec. We’ve reframed the manufacturer’s numbers so you can see what they actually mean for a San Diego home.

• Wall thickness: 0.098″ extruded aluminum. That’s thicker than the 0.062 – 0.078″ found on many mid-tier aluminum door lines, and it’s the reason this door can carry oversized glass without twisting or racking at the corners.
• Frame profile width: 2.56 inches. Slim enough for a modern look, deep enough to house the pivot hardware and multi-point locking components.
• Maximum panel size: Up to 60 inches wide by 120 inches tall. That’s a 5-foot by 10-foot door face. For comparison, most standard entry doors run 36 inches wide by 80 inches tall. The VLX 100 doubles the visual mass of a typical front door.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated. Tempered is standard for safety. Laminated adds impact resistance and sound dampening. Low-E cuts solar heat gain, which matters on west-facing entries in San Diego’s inland valleys.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. All six are available in the standard lead time. Powder-coated finishes carry a longer color warranty than raw anodized finishes in direct coastal exposure.
• Performance standards: NFRC-rated thermal break technology, AAMA 2400/2410 installation compliance, AAMA 812 sealant protocol, wind-load rated for local code requirements.

Performance Features

Pivot doors historically have a reputation for being beautiful but leaky. The VLX 100 was engineered to break that reputation. Here’s where its performance numbers land:

Thermal Efficiency
The VLX 100 frame uses a polyamide thermal break that separates the interior and exterior aluminum profiles. Without it, a black aluminum frame facing a San Diego summer sun becomes a giant heat conductor into your entryway. With it, the door achieves NFRC energy ratings that meet California Title 24 envelope requirements and contribute meaningfully to whole-home cooling loads.

Acoustic Performance
If you live on a busy street in North Park, University Heights, or near the flight path in Point Loma, laminated glass is the upgrade to specify. The interlayer in laminated glass interrupts sound wave transmission, dropping decibel levels noticeably compared to standard tempered glass. Pair that with the VLX 100’s compression-sealed perimeter and you get a pivot door that doesn’t let street noise pour in around the edges.

Airtightness & Weather Seal
The frame includes a continuous compression gasket system that seats the slab against the jamb when closed. This isn’t a felt strip; it’s a dual-fin seal that creates actual air barrier continuity. Airtightness matters for HVAC efficiency, dust control, and preventing that drafty-entryway feeling that undermines an otherwise modern home.

Waterproofing
Every Hale Windows San Diego installation of the VLX 100 includes AAMA 812-compliant low-expansion foam sealant on all perimeter joints, plus a sill pan system beneath the threshold. In San Diego’s rainy season, a poorly sealed pivot door shows leaks at the bottom corners first. The AAMA 2400/2410 installation standard exists specifically so that doesn’t happen. We follow it on every job, no exceptions.

Wind Resistance
San Diego coastal zones, particularly on the peninsula and in Coronado, experience wind gusts that would rattle a lesser pivot door in its frame. The VLX 100 is wind-load rated for local climate requirements, and the pivot hardware itself is engineered to resist lateral racking forces. For oceanfront installations, we specify the laminated impact glass option, which adds structural rigidity while meeting coastal code expectations.

Security & Hardware
The pivot mechanism uses floor-spring closing hardware and a multi-point locking system built into the stile. That means the door locks at top, bottom, and mid-point, not just at the handle. In a city where inland neighborhoods like Allied Gardens and San Carlos see occasional opportunistic property crime, a door that locks at three points beats a single deadbolt every time.

Color & Glass Options

Six frame finishes and six glass types mean the VLX 100 can take on very different personalities depending on what you choose.

Premium Black is the strongest architectural statement. It works exceptionally well on white stucco homes in Mission Hills and Bankers Hill, where the contrast pulls the eye straight to the entry. Pure White suits the Spanish-Revival and Mediterranean styles common in Kensington, South Park, and La Mesa, blending the frame with the home’s surface while keeping the pivot action as the reveal.

Anodized Silver reads as sleek and industrial. It’s our most popular selection for new modern builds in La Jolla and coastal Encinitas. Bronze carries a warmer, more traditional weight and works on mid-century homes in Clairemont where black can feel too heavy. Champagne is a softer metallic that pairs beautifully with natural stone and warm white exteriors in Rancho Santa Fe. Teak Wood finish replicates the look of solid timber without the sanding and sealing maintenance that real wood demands in San Diego’s dry, sunny climate.

On the glass side, Clear tempered is the default spec. Low-E is the smart add in east-facing entries that take morning sun in Santee, El Cajon, and Poway. Frosted or Obscure glass gives privacy for entries that face the street directly. Laminated is the pick for coastal wind zones, second-story entries, and homes near busy corridors where sound matters.

Installation by Hale Windows San Diego in San Diego

The product is only half the equation. A pivot door that isn’t set dead level, plumb, and square will bind at the pivot, drag at the top corner, or fail to seal along the strike side. Once that happens, the manufacturer warranty provides no protection, because ViewLux warranty coverage is conditional on proper installation by an authorized partner. That’s us, and it’s the reason people call Hale Windows San Diego.

Our process for every VLX 100 install in San Diego starts with a pre-installation inspection of the rough opening. We check the subfloor for deflection, because a wood-framed San Diego tract home from the 1970s moves differently than a steel-framed new build in Little Italy. If the opening isn’t right, we correct it before the door arrives, not after.

During install, we set the frame level, plumb, and square to a tolerance most window crews never bother hitting. We follow AAMA 2400/2410 installation standards, which govern exactly how the frame gets anchored, shimmed, and sealed. Every perimeter joint gets AAMA 812-compliant low-expansion foam sealant. That foam prevents the two most common pivot door failure points in San Diego’s microclimates: air leakage and moisture intrusion at the sill corners.

After the slab is hung and the pivot adjusted, we run a final water test on the threshold, check reveal gaps on all four sides, and walk you through operation and maintenance. Cleanup is part of the job, not an afterthought. We’ve installed across San Diego County, in Victorian-era bungalows in Golden Hill, ranch homes in Scripps Ranch, and oceanfront condos in Pacific Beach where salt air makes installation quality unforgiving. The standard doesn’t change based on zip code.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in San Diego

If you’re building or remodeling in San Diego and want the VLX 100 Pivot Door priced for your specific opening, call Hale Windows San Diego at (619) 793-3248. We’ll schedule a free on-site measurement, walk you through finish and glass options, and give you a written line-item quote. No pressure, no games, just a real number from a licensed San Diego installer.

Written by the team at Hale Windows San Diego, authorized ViewLux installation partner serving San Diego, CA.
