VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in San Diego, CA | Hale Windows San Diego

The VLX 100 Swing / Entry Door is a modern aluminum single-entry door with a clean, minimalist frame and multi-point locking. It’s built for San Diego homeowners who want a front door that holds up to coastal air, strong sun, and daily use without warping, swelling, or fading. Hale Windows San Diego is an authorized installation partner for ViewLux products in San Diego, CA, which means you get the manufacturer’s door installed by a local team that stands behind the full scope: measurement, permit coordination when needed, installation, and warranty support. If you’re researching this door for a remodel or replacement project in San Diego, call (619) 793-3248 and we’ll walk you through pricing, lead times, and what fits your opening.

Call (619) 793-3248

Product Overview – VLX 100 Swing / Entry Door

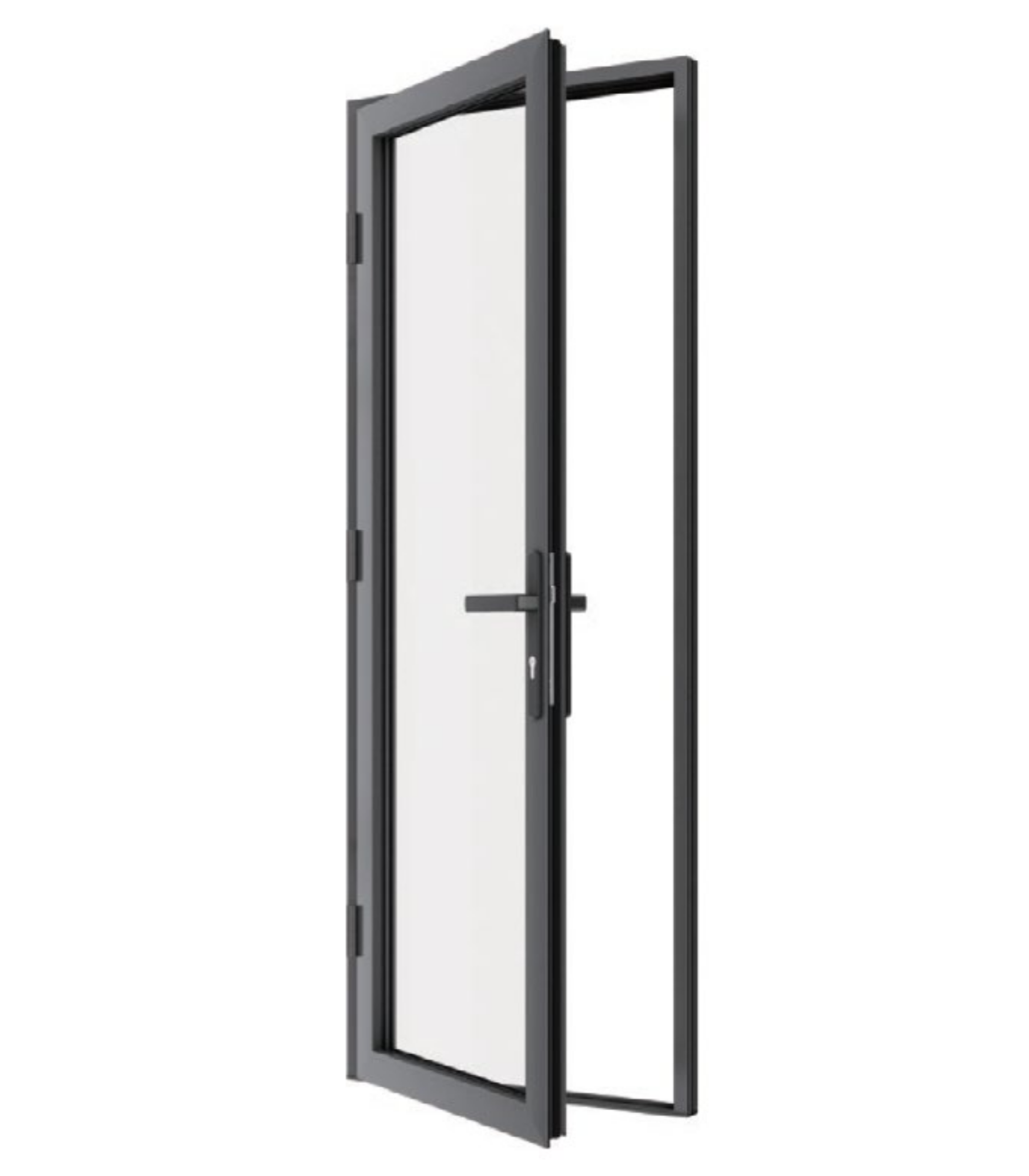

The VLX 100 is a single-entry swing door framed in extruded aluminum with a deliberately slim profile. ViewLux engineers it around a simple idea: the glass should be the focal point, and the frame should nearly disappear. That makes it a strong fit for mid-century homes in Mission Hills, contemporary builds in La Jolla, and coastal properties in Encinitas where clean sightlines matter as much as structural performance.

The door runs on a swing operation, opening inward or outward depending on your layout and local egress requirements. The frame carries a multi-point locking system, so the door secures at several points along the jamb rather than relying on a single deadbolt. That hardware upgrade matters in San Diego, where a front entry door is often the first line of defense against both forced entry and air leakage.

At 2.56 inches wide, the profile is slim enough to read as architectural but deep enough to house a polyamide thermal break. That break is the engineering detail that separates this door from older aluminum systems that sweat, conduct heat, and feel cold to the touch on winter mornings. The 0.098-inch wall thickness gives the frame real rigidity, which is why the VLX 100 can span openings up to 48 inches wide without bowing or binding over time.

Hale Windows San Diego stocks and installs the VLX 100 across San Diego County, from Chula Vista to Carlsbad. We see it specified most often for front entries, rear patio access, and ADU entrances where homeowners want a door that looks architectural without the maintenance burden of a wood system.

Technical Specifications

Here’s a straight read on the VLX 100’s build specs, reworded from the manufacturer’s data sheet. These numbers matter when you’re comparing doors, because they determine how the door performs under San Diego’s coastal wind loads and daily temperature swings.

• Frame wall thickness: 0.098-inch extruded aluminum. Heavier gauge than many entry-level aluminum doors, which reduces flex and keeps the door square over decades of use.
• Profile width: 2.56 inches. Slim enough for a modern aesthetic, deep enough for a structural thermal break.
• Maximum span: Up to 48 inches wide. This is the practical opening width for a single swing panel before you’d need to look at a double-door configuration.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated. Each can be specified as monolithic or insulated glass depending on your energy goals and privacy needs.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood-grain. All finishes are factory-applied and carry a finish warranty against fading and chalking.
• Screen options: Retractable screen or none. Most San Diego homeowners opt for the retractable screen on rear-entry doors, where cross-breeze ventilation matters more than curb appeal.
• Performance standards: NFRC-rated thermal performance, AAMA 812 perimeter sealant compliance, AAMA 2400/2410 installation standard compliance, and wind-load ratings sized for San Diego’s exposure categories.

Performance Features

Thermal Efficiency – The polyamide thermal break inside the frame interrupts heat transfer between the exterior and interior aluminum surfaces. That lowers U-factor ratings and keeps the interior face of the door from turning ice-cold on winter evenings or radiating heat into your entryway during August. In San Diego’s mild climate, the payoff is consistent indoor comfort and lower HVAC load, especially on west-facing entries that catch full afternoon sun.

Acoustic Performance – The VLX 100’s frame design reduces sound transmission through the perimeter, and when paired with laminated glass, it makes a measurable difference on busy streets. We’ve installed this door on homes along El Cajon Boulevard, University Avenue, and other high-traffic corridors in San Diego where road noise was the homeowner’s number-one complaint about their old door. The combination of a rigid frame, quality weatherstripping, and laminated glazing cuts a noticeable amount of street noise.

Airtightness & Weather Seal – The door’s compression weatherstripping and multi-point locking pull the panel tight against the jamb when closed. That matters in San Diego’s coastal zones, where marine air pushes humidity against entry doors year-round. A tight seal means less air leakage, fewer drafts, and a door that doesn’t whistle when the Santa Ana winds kick up.

Waterproofing – This is where the VLX 100 differentiates itself from budget doors. The sill design channels water away from the threshold, and the frame geometry includes drainage paths that keep standing water from pooling against the weatherstripping. When Hale Windows San Diego installs the door, we complement that design with AAMA 812 low-expansion foam sealant on every perimeter joint, which prevents water intrusion even during San Diego’s heaviest winter storms.

Wind Resistance – The 0.098-inch wall thickness and rigid frame construction allow the VLX 100 to meet wind-load requirements for exposed coastal lots in San Diego. If you’re within a few blocks of the ocean in Point Loma, Ocean Beach, or Imperial Beach, wind-driven rain and salt spray are real factors, and this door is rated to handle those conditions without leaking or deflecting.

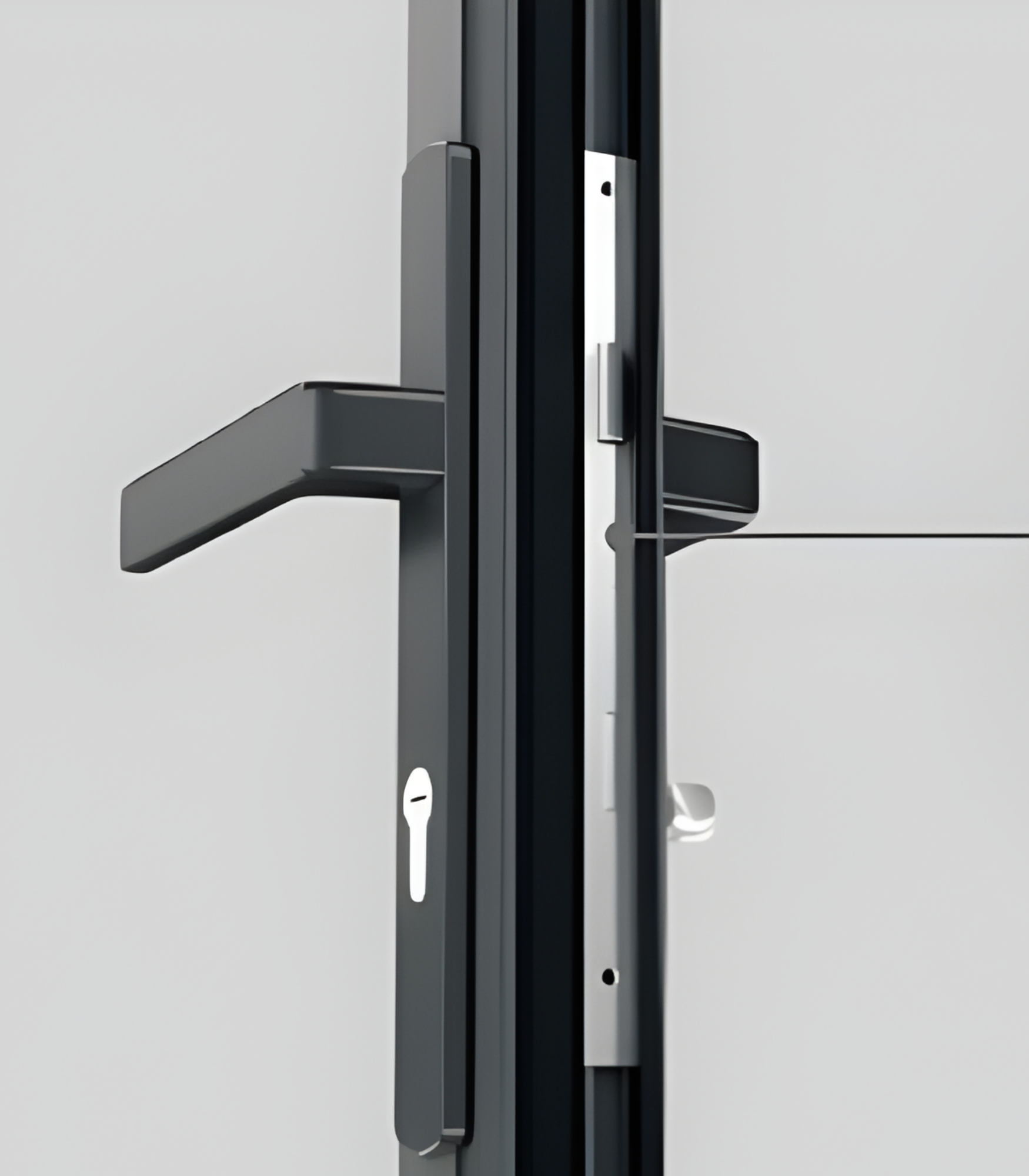

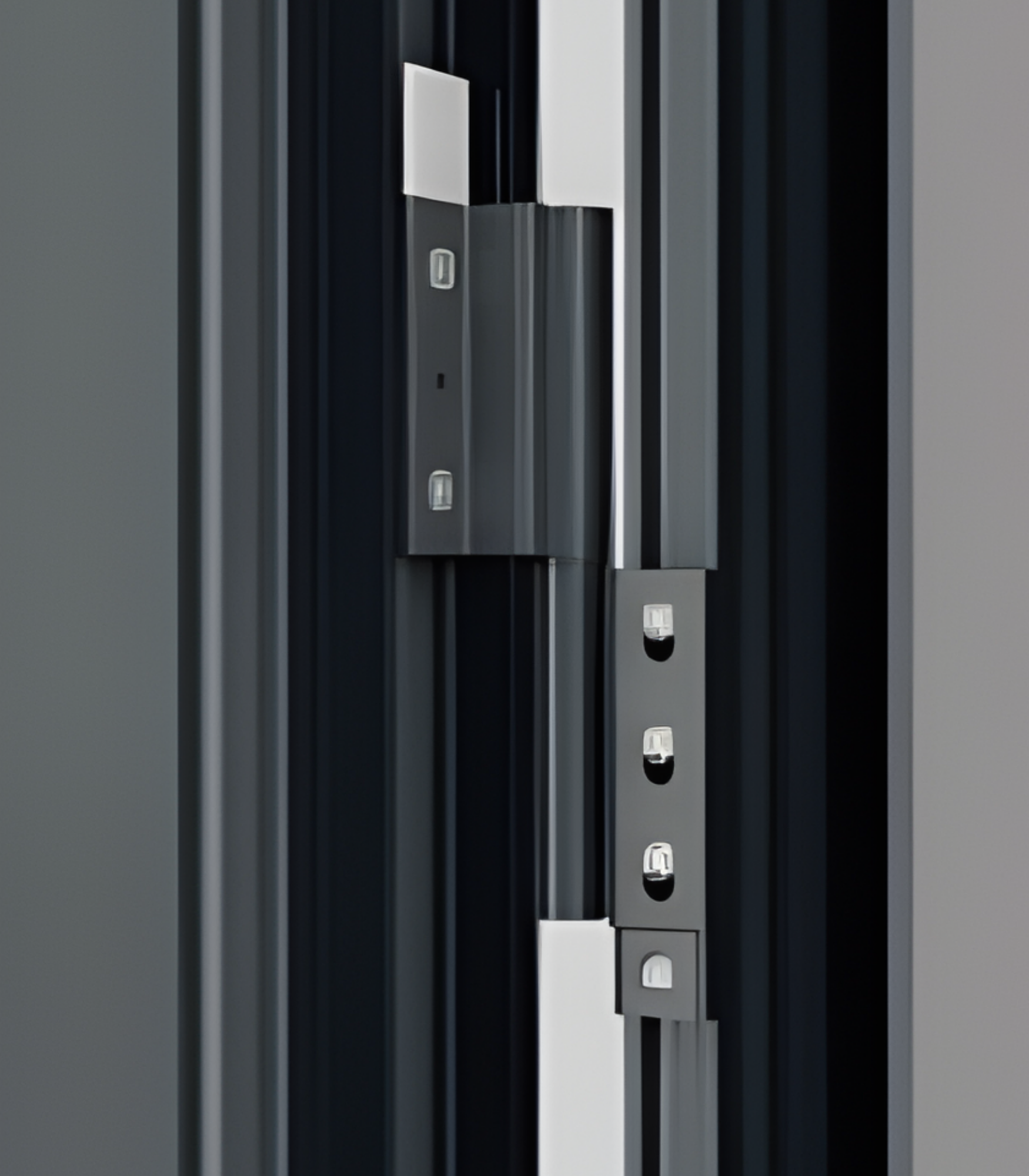

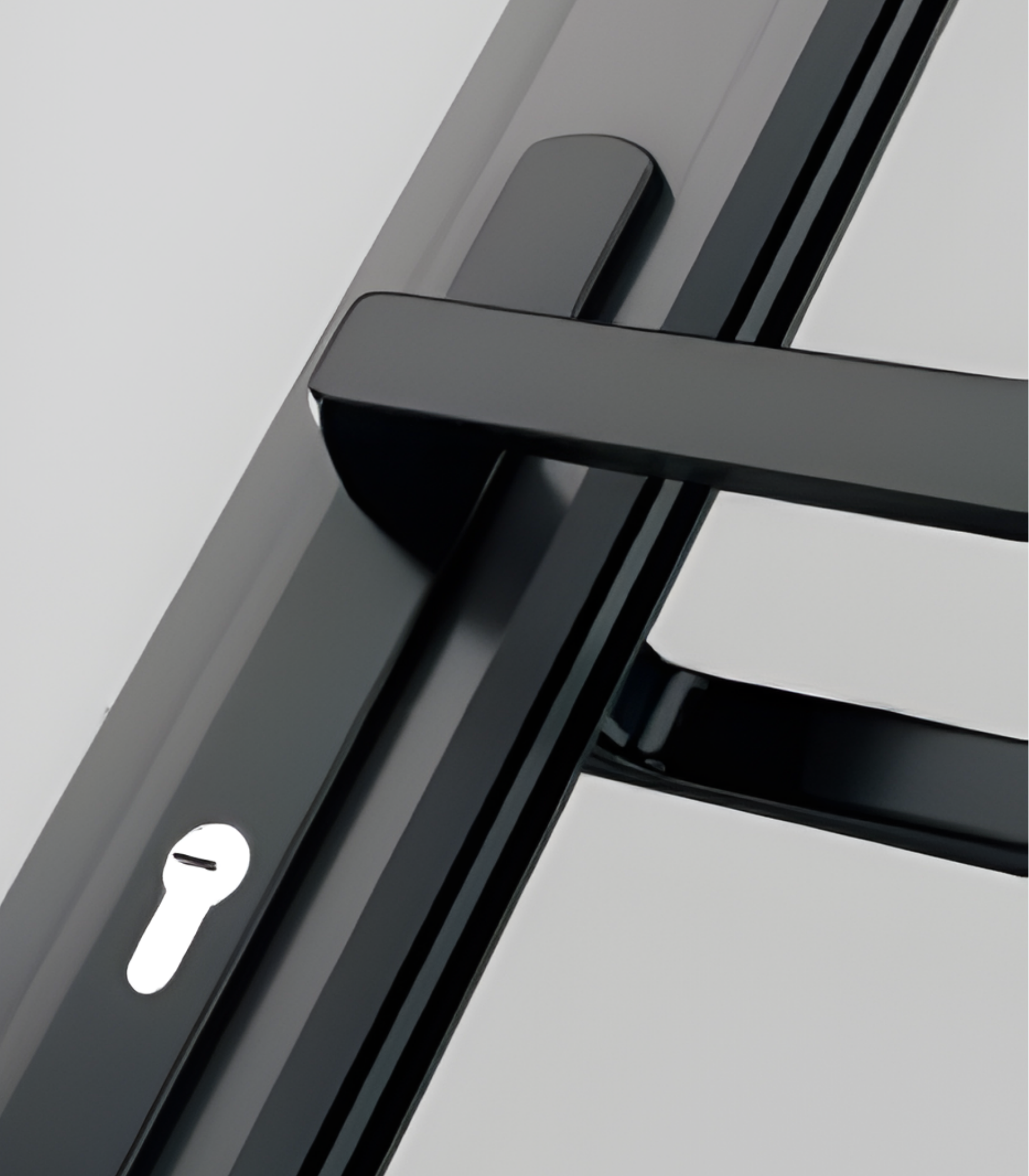

Security & Hardware – The multi-point locking system engages at the top, center, and bottom of the panel. That distributes force across the full height of the door instead of concentrating it at one latch point, which makes forced entry dramatically harder. The strike plates and hinges are reinforced to match, and the door can be speced with laminated security glass if you want an extra layer of protection against break-in attempts.

Color & Glass Options

The VLX 100 comes in six finishes, and the right choice depends on your home’s architecture and your tolerance for maintenance. Premium Black is the most requested finish in San Diego right now, because it creates a sharp contrast against white stucco and light exterior walls common in Mission Valley and Point Loma. Pure White reads clean and crisp against darker facades, while Anodized Silver gives you that raw aluminum look that works well on mid-century and industrial-style homes in North Park and South Park.

Bronze and Champagne both carry a warm metallic tone, and they hold up well on traditional Spanish-style homes where a pure black frame feels too stark. Teak Wood is a wood-grain finish that mimics natural timber while keeping aluminum’s durability, which makes it a smart pick for homeowners in Rancho Santa Fe or Del Mar who want the look of wood without the termite and rot risks that come with it.

Glass selection is just as important as finish. Clear glass maximizes light and views, which makes it the default choice for rear-entry doors facing patios or yards. Frosted and Obscure glass are both good for front entries where you want natural light without giving passersby a clear view into your home. Low-E glass reflects heat while letting light through, which pays off on south- and west-facing entries in San Diego. Tempered glass is stronger than standard annealed glass and shatters into small, relatively safe pieces if broken. Laminated glass adds a film layer that holds shards in place, which upgrades both security and sound control. For a front entry door in San Diego, we almost always recommend laminated glass for its combination of noise reduction and break-in resistance.

Installation by Hale Windows San Diego in San Diego

Buying the right door is half the project. Installing it correctly is the other half, and that’s where we see the most failures in San Diego. An aluminum door installed without proper flashing, shimming, and perimeter sealing will leak, bind, and eventually void the manufacturer’s warranty. ViewLux’s warranty terms are tied to installation standards, and that’s a serious reason to use an authorized partner.

Hale Windows San Diego installs every VLX 100 Swing / Entry Door according to AAMA 2400/2410, the industry installation standard for windows and doors. Our process starts with a pre-install inspection of the rough opening. We check the framing for rot, termite damage, and out-of-square conditions before the new door ever comes off the truck.

From there, we set the door level, plumb, and square. That’s not a marketing phrase. It means we use shims and measurements to make sure the frame sits true in the opening, because a door that’s off by even an eighth of an inch will sag, bind, or fail to seal. Once the frame is set, we apply AAMA 812 low-expansion foam sealant around the full perimeter. That foam fills voids and creates an airtight, waterproof transition between the door frame and the rough opening.

After the foam cures, we install interior and exterior trim, adjust the hinges and multi-point locking hardware so the panel operates smoothly, and run a water test to confirm the sill drains properly. We finish by removing all job-site debris and walking you through the operation, maintenance, and warranty paperwork.

San Diego’s building codes also matter here. Depending on your project scope, a new entry door may require a permit, especially if the opening size changes or the home is subject to coastal zone requirements. Hale Windows San Diego handles that coordination for you, and we pull permits when the job calls for them.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in San Diego

The VLX 100 Swing / Entry Door is a serious upgrade for any San Diego home, but only when it’s speced correctly and installed properly. Hale Windows San Diego will measure your opening, help you choose the right glass and finish, and give you a written, line-item quote before any work starts. Call (619) 793-3248 to schedule a free on-site measurement and start your project.

Written by the team at Hale Windows San Diego, serving San Diego, CA as an authorized ViewLux installation partner.
